特性
包含的所有物品请看发货清单标签
可选用的配件在下方出售

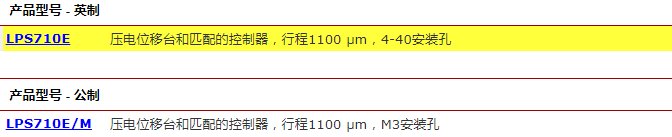

LPS710E(/M)中包含LPS710(/M)压电位移台和PPC001压电控制器，两者相互匹配，且经过出厂校准。每个装置都标有相同的序列号，不推荐用其他的控制器来操作压电位移台。
如需周期较大的波形(即，总位移>200 µm的正弦波)，推荐的驱动频率为：
≤40 Hz，用于*大50 g的负载
≤30 Hz，用于从50 g到150 g的负载
≤20 Hz，用于从150 g到300 g的负载

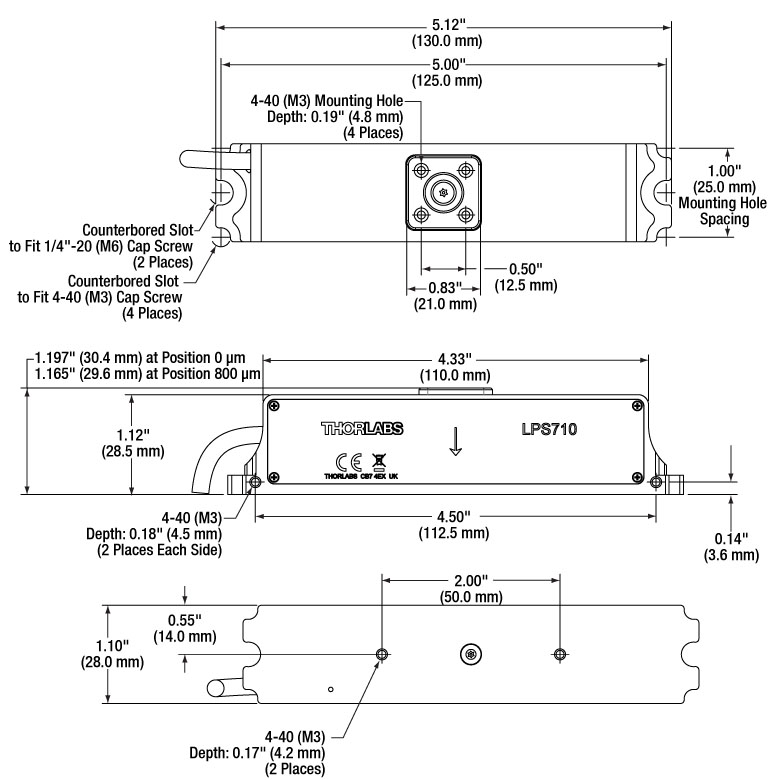

LPS710E(/M)机械图纸
规格
| Piezo Stage Specifications | |
|---|---|
| Open-Loop Travel Range (-25 V to 150 V) | 1100 µm ± 10% |
| Closed-Loop Travel Range | 800 µm |
| Open-Loop Resolution | 2 nm |
| Closed-Loop Resolution | 6 nm |
| Maximum Loada | 300 g (0.66 lbs) |
| Feedback Transducer Type | Capacitive |
| Resonant Frequency (15 g Load) | Primary: 185 Hz ± 15% Secondary: 115 Hz ± 15% |
| Pull Force (Increasing Voltage) | 55 N ±15% |
| Push Force (Decreasing Voltage) | 45 N ±15% |
| Accuracy (Closed Loop - Over Full Travel Range) | ±0.06% |
| Bidirectional Repeatability (Closed Loop - Over Full Travel Range) | ±0.03% |
| Angular Error (Closed Loop - Over Full Travel Range) | ±40 µrad |
| Stiffness | 0.1 N/µm ±20% |
| Capacitance | 16 µF ± 15% |
| Cable Length | 2 m (6' 7") |
| Connector | Male 15-Way Mixed Signal Combination D-Sub |
| Dimensionsb | 130 mm x 28 mm x 30 mm (5.1" x 1.1" x 1.2") |
| Dimensions (Excluding Mounting Plate) | 130 mm x 28 mm x 28.5 mm (5.1" x 1.1" x 1.12") |
| Weightc | 180 g (0.40 lbs) |
| Operating Temperature Range | 5 to 40 °C |
质量中心应该尽可能地靠近位移台，以便获得非常好的性能。
高度为位移台中间行程位置的高度。完quan伸展或关闭时，位移台的高度为30.4 mm。该位移台的设计使安装表面始终位于外壳上表面的上方。
不包含电缆。
| Controller Specifications | ||
|---|---|---|
| Piezoelectric Output | ||
| Drive Voltage Range | -25 V to +150 V | |
| Drive Voltage Stability | 100 ppm over 24 Hours (After 30-Minute Warm-Up) | |
| Drive Voltage Noise | < 0.5 mV (RMS)a | |
| Output Current | 150 mA | |
| External Input (BNC) | ||
| Input Voltage Rangeb | -10 V to +10 V | |
| Input Voltage for Full Range | 10 V DC ± 2% | |
| Input Impedance | 10 kΩ | |
| Absolute Maximum Input Voltage | ±20 VDC | |
| External Output (BNC) | ||
| Output Voltage Range | 0 V to +10 V Nominal for Full Range (Output can Swing Negative in Certain Scenarios) | |
| Output Impedance | 100 Ω | |
| Minimum Recommended Output Impedance | 10 kΩ | |
| Physical Specifications | ||
| Input Powerc | Input Voltage | 24 VDC ± 5% |
| Input Current | < 2 A | |
| Dimensions | 205.0 mm x 147.0 mm x 68.3 mm (8.07" x 5.79" x 2.69") | |
| Weight | 1.65 kg (3.63 lbs) | |
| Operating Temperature Range | 5 to 40 °C | |
测量带宽：20 Hz - 100 kHz
由输入电压确定的驱动电压或位移被添加到Kinesis GUI的设定值中。详情请看软件与外部控制标签。
LPS710E附带符合当地区域的电源。
