607nm激光器
LL607-400mw
LD PUMPED ALL-SOLID-STATE RED LASER AT 607nm DPSS red laser at 607nm is made features of ultra compact, long lifetime and easy operating, which is widely used in measurement, spectrum analysis as the substitute for He-Ne lasers.
| Part number | LL607-400mw |
| Wavelength (nm) | 607±3 |
| Operating mode | CW |
| Output power (mW) | 1-400 |
| Power stability (rms, over 4 hours) | <3%, <2%, < 1%, 0.5% |
| Transverse mode | TEM00 |
| M2 factor | < 1.2 |
| Beam diameter at the aperture ( 1/e2, mm) | <2.0 |
| Beam divergence, full angle (mrad) | < 1.5 |
| Polarization Ratio | > 100:1, (Horizontal or Vertical Optional) |
| Warm-up time (minutes) | <5 |
| Pointing stability after warm-up (mrad) | <0.05 |

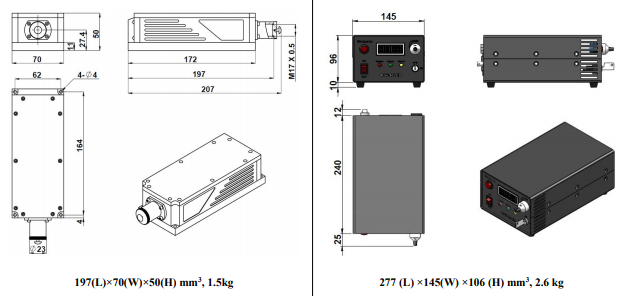

| Beam height from base plate (mm) | 27.4 |
| Operating Temperature (°C) | 10-35 |
| Modulation option | TTL on/off, 1Hz- 1kHz, 1kHz- 10kHz, |
| Power supply (90-264VAC) | PSU |
| Expected lifetime (hours) | 10000 |
| Warranty | 1 year |
