产品特性
● 5英寸大尺寸触摸显示屏，WVGA分辨率
● 内置的GUI功能：
○ 测量连续光和调制光
○ 快速采集机载和远程数据，zui,快 达到100 kS/s
○ 将用户提供的光谱校准和衰减校正数据应用于测量过程
○ 内置计算器可以执行跨通道数学函数
● 交互式GUI可供下载，以演示所有前面板功能(查看交互式演示标签)
● 设备输入/输出：
○ 可配置的模拟输出
○ 光学快门控制
○ zui,多 连接两个外部温度探头和两个风扇
○ 数字I/O接口，包括用户可访问的I2C总线
○ 通过USB、Ethernet或RS232实现远程操作和网络功能
● 通过同一网络内PC上的Web浏览器查看表头测量值
● 兼容Thorlabs所有C系列探头
● 提供光功率监测PC软件
● 单通道和双通道测量
● 通过触摸屏和仪器控件都可以操作所有功能
● 通过USB、Ethernet或RS232实现远程操作和网络功能
● 8 GB内存
| Item #a | PM5020 |
|---|---|
| Compatible Sensors | Photodiode Power, Thermal Power, Thermal Position and Power, and Pyroelectric Energy |
| Number of Channels | 2 |
| Optical Power Rangeb | 100 pW to 200 W |
| Optical Energy Rangeb | 10 µJ to 15 J |
| Available Sensor Wavelength Rangeb | 185 nm - 25 μm |
| Display Refresh Rate | 25 Hz |
| Bandwidtha | DC - 250 kHz |
| Photodiode Sensor Measurement Rangeb,c | 2 nA - 10 mA |
| Thermopile Sensor Measurement Rangeb,c | 2 mV - 1 V |
| Pyroelectric Sensor Measurement Rangeb,c | 20 mV - 100 V |
a. 与探头相关
b. 范围可以选择用Watts(光电二极管和热电堆)或Joules(Pyroelectric)表示。
规格
| Specificationsa | |
|---|---|
| Display | |
| Type | Graphical IPS LCD with Touch, 854 x 480 Pixels |
| Format | Numerical, Bargraph, Needle, Graph Power/Position/Temperature, Statistics |
| Size | 5.0" (4.32" x 2.43", 109.7 mm x 61.6 mm) |
| Update Rate | 25 Hz |
| Sensor Interface | |
| Compatible Sensors | Thorlabs' C-Series Photodiode, Thermal Power, Thermal Position & Power, and Pyroelectric Sensors Photodiodes up to 10 mA Thermopiles up to 1 V Pyroelectric Sensors up to 100 V See Table Below for Additional Details |
| Channels | 2 |
| Input Connectors | Two DE-9 Female, Back Panel (Compatible with C-Series Connectors) |
| External Trigger | |
| Connector | BNC, Front Panel (TTL 5 V Max) 10-Pin PCB, Back Panel (TTL 5 V Max) |
| Analog Outputs | |
| Connector | Two BNC, Back Panel |
| Signal | CH1, CH2 Amplified, Corrected Input Signal |
| Voltage Range | -2.5 V to 10 V |
| Bandwidth | Up to 250 kHz, Dependent on Sensor and Settings |
| Programmable Analog Output | |
| Connector | Four BNC, Back Panel |
| Signal | Selectable: CH1; CH2; CH1-CH2; CH1/CH2; Position X, Y |
| Voltage Range | -5 to 10 V; Programmable Gain and Offset |
| Bandwidth | Up to 1 kHz, Dependent on Sensor and Settings |
| Shutter Control | |
| Type | Support for SH05R(/M) or SH1(/M) Optical Shutter with Interlock Input |
| Connector | Hirose HR10-7R-6S, 2.5 mm Mono Audio |
| Power Rating | 15 V, 0.5 A |
| Temperature Control | |
| Type | NTC |
| Connector | 2 Channels: 2.5 mm Stereo Audio and 10-Pin PCB (Back Panel) |
| Digital I/O | |
| Type | 4 Configurable I/O Channels, 1 Trigger In/Output, I2C (LVTTL / TTL) |
| Connector | 10-Pin PCB, Back Panel |
| Fan Control | |
| Type | 2 Channels, Voltage or rpm Control (12 V, 0.25 A) |
| Connector | 10-Pin PCB, Back Panel |
| Power Rating | 12 V, 0.25 A |
| Interface | |
| Type 1 | USB 2.0 |
| Connector | USB B, Back Panel |
| Type 2 | Ethernet |
| Connector | RJ45, Back Panel |
| Type 3 | Serial RS232 |
| Connector | DE-9 Female, Back Panel |
| Power Supply | |
| Line Voltage | 100 to 240 V |
| Line Frequency | 50 to 60 Hz |
| Maximum Power Consumption | 30 W |
| Mains Supply Overvoltage | Category II (Cat II) |
| General | |
| Dimensions (W x H x D) | 253.2 mm x 110.6 mm x 293.6 mm (9.97" x 4.35" x 11.56") |
| Weightb | 2.6 kg |
| Mounting Options | Benchtop |
| Operating Temperature Rangec | 0 to 40 °C |
| Storage Temperature Range | -40 to 70 °C |
| Relative Humidity | Max 80% up to 31 °C, Decreasing to 50% at 40 °C |
| Pollution Degree (Indoor Use Only) | 2 |
| Operation Altitude | < 2000 m Above Sea Level |
a. 所有规格都在23 ± 5°C和相对湿度45 ± 15%(不冷凝)的条件下有效。
b. 这是PM5020功率计除去所有配发的附件之后的重量。
c. 不冷凝
| Item # | PM5020 | ||
|---|---|---|---|
| Detector Compatibility | Photodiode Power Sensors | Thermal Power Sensors Thermal Position & Power Sensors | Pyroelectric Energy Sensors |
| Measurement Ranges | 21 Ranges: 2 nA to 10 mA Ranges Selectable in W or A, Sensor Dependent | 9 Ranges: 2 mV to 1 V Ranges Selectable in W or V, Sensor Dependent | 12 Ranges: 20 mV - 100 V Ranges Selectable in J or V, Sensor Dependent |
| Wavelength Ranges | 200 nm - 1800 nm (Sensor Dependent) | 190 nm - 25 μm (Sensor Dependent) | 185 nm - 25 μm (Sensor Dependent) |
| Power / Energy Ranges | 100 pW - 20 W (Sensor Dependent) | 100 μW - 200 W (Sensor Dependent) | 10 μJ - 15 J (Sensor Dependent) |
| Bandwidth | DC - 250 kHz, Dependent on Sensor and Settings | DC - 1 kHz, Dependent on Sensor and Settings | N/A |
| Max Repetition Rate | N/A | N/A | 80 kHz |
| Wavelength Correction | Sensor Dependent; nm (A/W) | Sensor Dependent; nm (V/W) | Sensor Dependent; nm (V/J) |
| Units | W, dBm, W/cm2, lx, A | W, dBm, W/cm2, V | J, J/cm2, W, W/cm2 |
| Accuracy | ±0.2% of Full Scale (1 µA - 10 mA Ranges) ±0.5% of Full Scale (2 nA - 400 nA Ranges) | ±0.5% of Full Scale | ±0.5% of Full Scale |
| Display Resolution | 0.1 pA / Responsivity Value (A/W) | 0.1 µV / Responsivity Value (V/W) | 1 µV / Responsivity Value (V/J) |

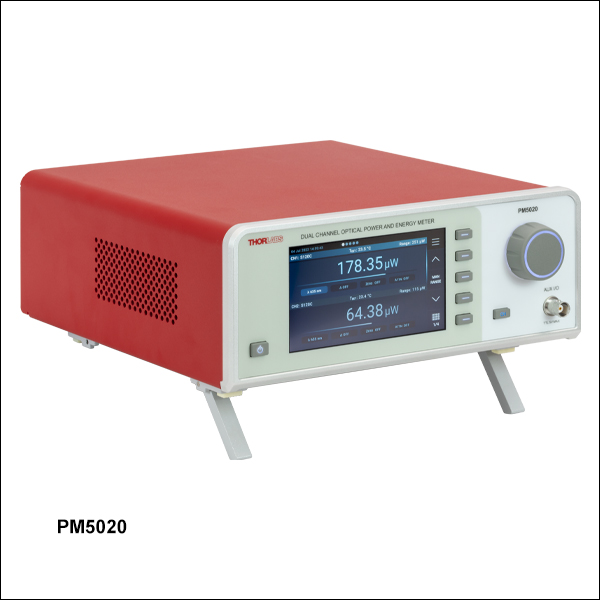

PM5020双通道光功率能量计表头接合一个或两个探头可测量连续波和调制光源。此表头兼容超过35种功率、位置和能量探头。与这些探头一起使用时，表头可以自动检测并读取存储在探头接头中的探头校准信息，并将这些数据与用户设置的测量波长相结合，以提供校准的功率或能量测量值。而且，此表头还可以与满足规格标签上所列兼容性要求的第三方或自定探头一起使用。
