Thorlabs Veneto®倒置显微镜 细胞成像系统

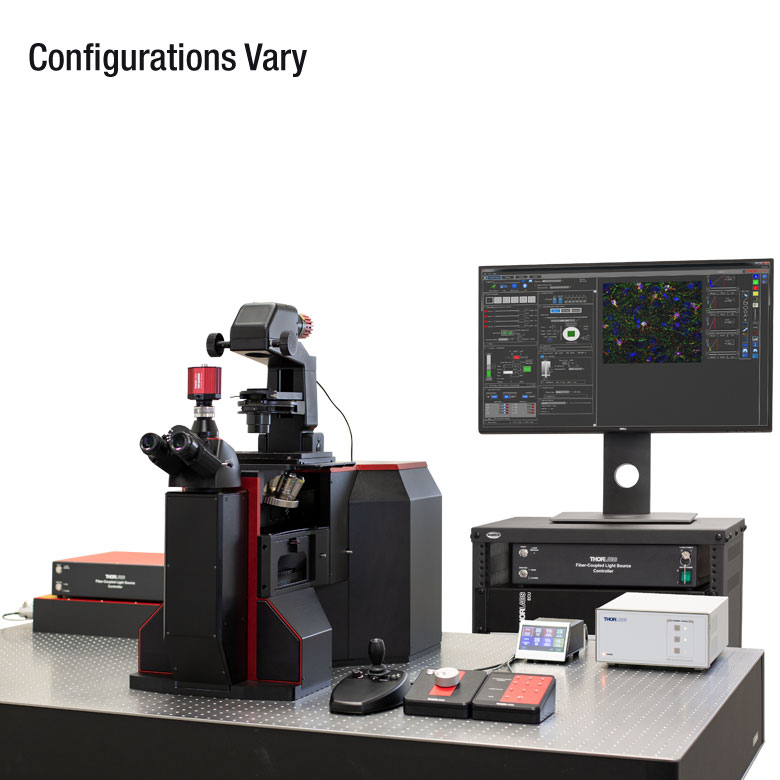

Veneto®倒置显微镜系统
Thorlabs的模块化倒置显微镜平台为宽场、共聚焦和多光子成像提供开箱即用的解决方案。倒置显微镜是一款功能强大且用途广泛的研究工具，可用于多种应用，例如荧光、in vivo、ex vivo、3D、高分辨率、高速(视频速率)和活组织成像。此平台设计用于需要倒置显微镜平台的细胞生物学和其他生命科学应用的实验室，此平台还可提供我们正置系统的关键功能，例如多种成像模式、附件端口和易访问光路。
选项概览
激光扫描
● 8 kHz和12 kHz共振-振镜和共振扫描仪，用于高速成像
● 振镜扫描仪，用于用户自定义的ROI形状和光刺激图案
● 超宽带扫描光学元件，经优化以用于双光子和三光子成像
信号探测
● 标准多碱或高灵敏度GaAsP PMT
● 13°探测模块，用于 zui,多 四个PMT，实现共聚焦成像
● 13°非减束(NDD)探测模块，用于两个PMT，实现多光子成像
多达7个可定制的光路
● 底层的3条路径，用于激光扫描和宽场成像
● di,二 层的1条路径，用于落射照明或激光扫描
● 物镜后方 di,三 层的1条路径，用于NDD探测
● 1条透射光路
● 1条三目路径
产品规格
| Veneto® Microscope Specifications | ||
|---|---|---|
| Optical System | Infinity Corrected | |
| Optical Field Number | 20 | |
| Laser Scanning | Scan Path Wavelength Range | 450 - 1100 nm, 680 - 1300 nm, or 800 - 1800 nm |
| Scan Paths | Resonant-Galvo-Galvo Scanner, Galvo-Resonant Scanners, or Galvo-Galvo Scanners; Single or Dual Scan Paths | |
| 8 kHz Resonant-Galvo-Galvo or Galvo-Resonant Scan Speed | 2 fps at 4096 x 4096 Pixels 30 fps at 512 x 512 Pixels 400 fps at 512 x 32 Pixels | |
| 12 kHz Resonant-Galvo-Galvo or Galvo-Resonant Scan Speed | 4.4 fps at 2048 x 2048 Pixels 45 fps at 512 x 512 Pixels 600 fps at 512 x 32 Pixels | |
| Galvo-Galvo Scan Speed | 3 fps at 512 x 512 Pixels 48 fps at 512 x 32 Pixels 70 fps at 32 x 32 Pixels Pixel Dwell Time: 0.4 to 20 µs | |
| Galvo-Galvo Scan Modes | Imaging: Line, Polyline, Square, or Rectangle Non-Imaging: Circle, Ellipse, Polygon, or Point | |
| Field of View | 20 mm Diagonal Square (Max) at the Intermediate Image Plane [12 mm Diagonal Square (Max) for 12 kHz Scanner] | |
| Scan Zoom | 1X to 16X (Continuously Variable) | |
| Scan Resolution | Up to 2048 x 2048 Pixels (Bi-Directional) [Up to 1168 x 1168 Pixels for 12 kHz Scanners] Up to 4096 x 4096 Pixels (Unidirectional) [Up to 2336 x 2336 Pixels for 12 kHz Scanners] | |
| Observation Tube | Trinoculars with 10X Eyepieces and Camera Port for 1X Camera Tube with External C-Mount Threads | |
| Brightfield Light Source | Mounted LED (6500 K Correlated Color Temperature, 2350 mW Min. Output Power) | |
| Widefield Light Source | Thorlabs' Mounted, Solis®, and Chrolis™ LEDs or Optional Port for Industry-Standard Liquid Light Guides | |
| Laser Scanning Light Source | Tiberius® Ti:Sapphire Femtosecond Laser or Confocal Laser Source (See Tables Below) | |
| Condenser | LWD 0.52 NA 3.5 mm Translation with Trans-Illumination Module | |
| Motorized XY Scanning Stage | Travel Range | 110 mm x 75 mm (4.3" x 2.95") |
| Velocity (Max) | 250 mm/s | |
| Acceleration (Max) | 2000 mm/s2 | |
| Horizontal Load Capacity (Max) | 1.0 kg (2.2 lb) | |
| Objective Turret | Five Manual Positions with M25 x 0.75 Threads | |
| Focusing Unit | 15 mm of Motorized Travel Focus and Optional Autofocus Stepper Motor: 15 mm Travel Range, 50 nm Resolution Piezo: 100 µm Travel Range, 50 nm Resolution | |
| Filter Turret | Six Motorized Positions for Ø32 mm Excitation and Emission Filters | |
| Control Units | Stage Joystick and Microscope Control Pad | |
