Effilux High Power LED Backlights

• >90% Uniformity

• Integrated Analog Controller for Precise Intensity and Dimming

• Anti-Reflection System to Absorb Stray Light

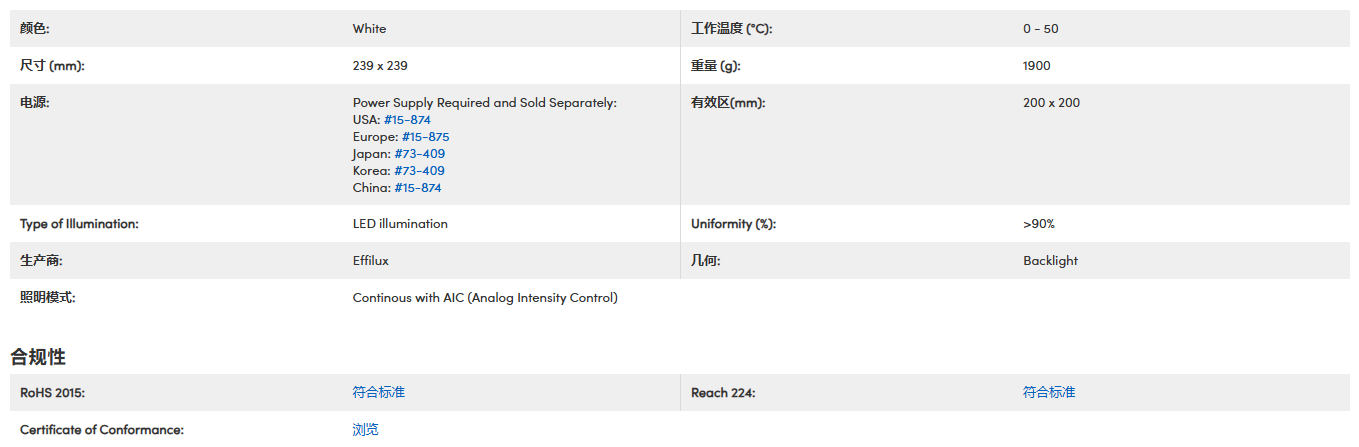

通用规格

Type of Illumination:

LED illumination

Uniformity (%):

>90%

生产商:

Effilux

几何:

Backlight

照明模式:

Continous with AIC (Analog Intensity Control)

工作温度 (°C):

0 - 50

Effilux High Power LED Backlights offer high intensity, greater than 90% uniformity, and exceptional contrast providing a superior solution for backlight inspections. The convenient integrated analog controller allows precise control of power and intensity without the need for additional components. Effilux High Power LED Backlights feature an anti-reflection design which absorbs unwanted light to provide higher contrast to ensure a clear image. These backlights are ideal for machine vision inspection applications.

Note: Optional collimation film kits for 200 x 200 backlights (#22-104) and 300 x 300 backlights (#22-105) available and sold separately.
