青蓝色玻璃特性(Blue Glass Characteristic)
| 牌号 Type | 厚度(mm) Thickness | A[2856K] | D65 | 化学稳定性 Chemical Stability | ND | α×10-7 (/℃) | Tg (℃) | Ts (℃) | S | |||||
| x | y | Y | x | y | Y | DA | DW | |||||||
| QB9 | 2 | 0.187 | 0.391 | 14.8 | 0.156 | 0.256 | 20.3 | 1 | 2 | 1.524 | 89 | 460 | 532 | 2.56 |
| QB10 | 2 | 0.409 | 0.417 | 74.4 | 0.283 | 0.324 | 76.6 | 1 | 2 | 1.529 | 84 | 540 | 606 | 2.63 |
| QB11 | 2 | 0.328 | 0.412 | 52.0 | 0.226 | 0.290 | 59.1 | 1 | 2 | 1.514 | 93 | 477 | 550 | 2.57 |
| QB12 | 2 | 0.269 | 0.406 | 36.2 | 0.194 | 0.271 | 44.2 | 1 | 2 | 1.517 | 91 | 506 | 572 | 2.59 |
| QB13 | 2 | 0.189 | 0.377 | 17.3 | 0.157 | 0.242 | 23.7 | 1 | 2 | 1.522 | 90 | 490 | 555 | 2.61 |
技术要求(Technical Indexes)
| 牌号 Typr | 厚度(mm) Thickness | 400(nm) | 480(nm) | 640(nm) | 680(nm) | 700(nm) | 1000(nm) |
| QB9 | 2 | ≥10.0 | ≥36.5 | ≤1.0 | |||
| QB10 | 2 | ≥76.0 | 23.0～31.0 | ≤5.0 | |||
| QB11 | 2 | ≥80.0 | ≥83.6 | 5.5～11.6 | |||
| QB12 | 2 | ≥63.5 | ≥76.4 | ≤0.7 | |||
| QB13 | 2 | ≥20.0 | ≥51.5 | ≤0.2 |
汽泡、条纹、应力类级别(Class Of Bubble Stripe Stress)
| 牌号 Type | 气 泡 Rubble | 条 纹 Stripe | 应 力 Stress |
| QB9 | C-B | 4 | 3 |
| QB10 | D | 3C | 3 |
| QB11 | C-B | 3C | 3 |
| QB12 | C-B | 3C | 3 |
| QB13 | C-B | 3C |

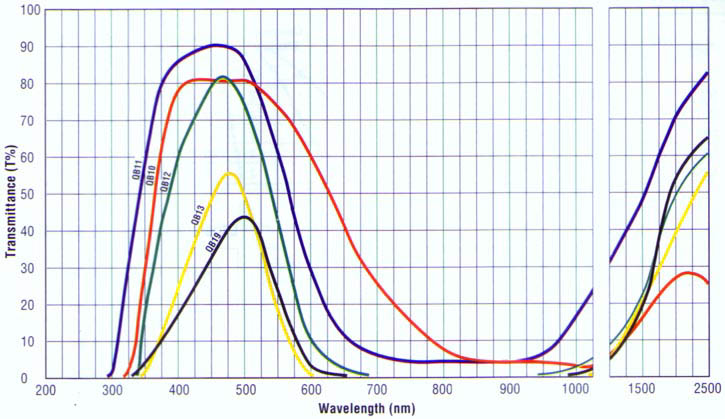

特性曲线图(Wavelength) QB9-QB13
