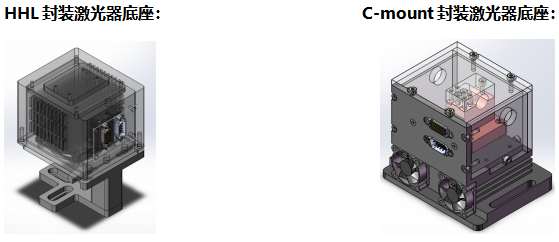

PHOTONTECK可提供14-BTF/HHL/C-mount封装形式的激光器底座。

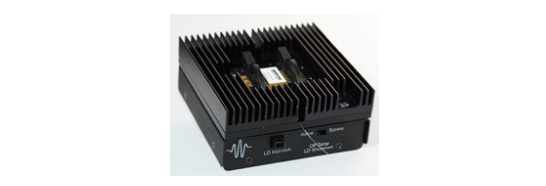

14-BTF封装激光器底座：

产品特点：

       • Capable of running lasers up to 5 A
       • Capable of running thermoelectrics up to 5 A
       • Compatible with 14-pin butterfly laser diode packages
       • Type 1 & Type 2 butterfly packages are supported with pre-soldered connection card
       • Other laser types supported with customer soldered Custom Butterfly Card
       • Zero insertion force (ZIF) socket holds laser diode
       • Laser interlock safety circuit
       • TEC Active/Bypass interlock safety circuit
       • Mounts to an optics table with standard 1/4-20”screw
       • Compatible with 8 Wavelength temperature controllers and laser drivers
